chinese cheap prices supplier polyurethane spray foaming machine for sale

  • 1 - 9 Sets
    $3,299.00
  • 10 - 19 Sets
    $3,199.00
  • >=20 Sets
    $2,800.00
Model Number:
CNMC-E2 CNMC-D
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 5 6 - 10 11 - 50 >50
Est. Time(days) 5 20 30 Negotiable
Customization:
Graphic customization (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Customized logo (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Processing Type:
Foaming Machine
Condition:
New
Place of Origin:
China
Brand Name:
CNMC
Product Type:
Foam Net
Machine Type:
electric PU spray foaming machine
Voltage:
230V/400V
Dimension(L*W*H):
750*560*1140mm
Certification:
ce
Weight (KG):
109 KG
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support
Key Selling Points:
Competitive Price
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Colombia, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Nigeria
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Uzbekistan
Applicable Industries:
Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , china supplier polyurethane spray foam machine for
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, Pump, Gear, Pressure vessel, Engine, Gearbox
Power source:
230v single phase 230v 3 phase ,400v 3 phase ,50/60HZ
whole power:
7.5kw
Max hose support:
90 meters
Air source:
0.5~0.8 MPa ≥0.9m3/min
Maximum output pressure:
17MPA
AB material output ratio:
1:1
Chemical output:
2-12kg/min
Weight:
109kg
Power(W):
7.5KW
Product Name:
chinese cheap prices polyurethane spray foaming machine for sale
Supply Ability
Supply Ability:
560 Set/Sets per Month chinese cheap prices supplier polyurethane spray foaming machine
Packaging & Delivery
Packaging Details
plywood box
40sets /20' container
chinese cheap prices supplier polyurethane spray foaming machine for sale
Port
Qingdao Shanghai Ningbo
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 5 6 - 10 11 - 50 >50
Est. Time(days) 5 20 30 To be negotiated
Video Description
Product Description
china supplier spray foam machine polyurethane with 230V for sale

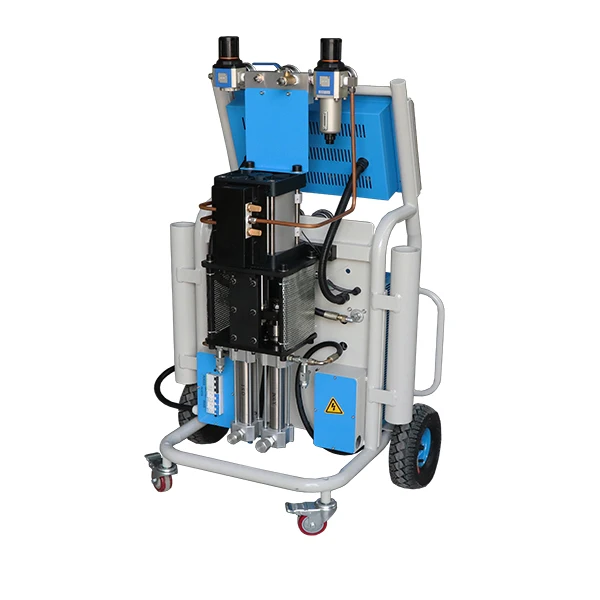

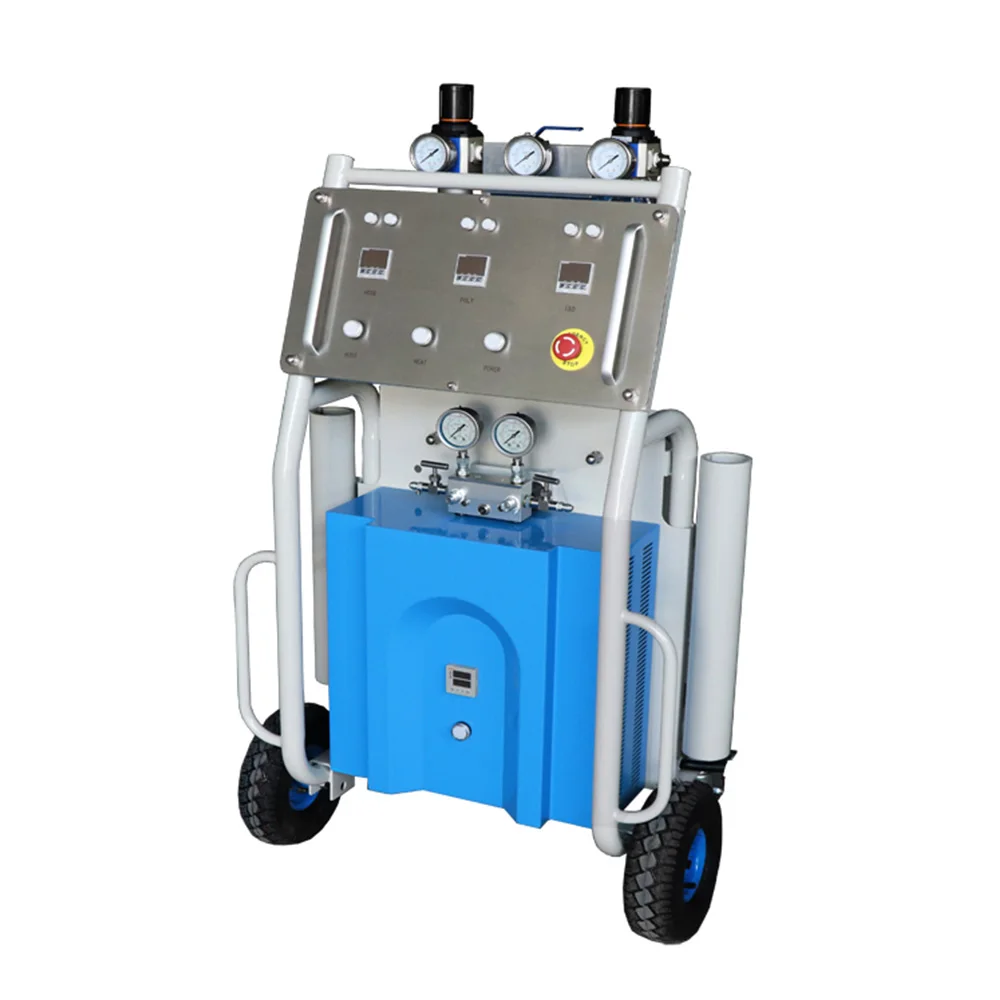

CNMC-E2 Spray Foam Machine

Power source:230v single phase 230v 3 phase ,400v 3 phase ,50/60HZ
Whole power:7.5KW
Heater power:3kw each side
Heating hose power:1000w/15meters
Driven mode:Pneumatic
Air source:0.5-0.8MPa≥0.9m³
Chemical output:2-12kg/min
Maximum output pressure:17MPa
A and B chemical output ratio:1:1
Max hose support :90 meters

The new CNMC-E2 air driven proportioning unit is of an advanced and compact design. It is specially aimed at the applications of
polyurethane foam in place. Its particular configuration facilities easy access to all its components, simplifies the control
functions ad significantly reduces the maintenance work.

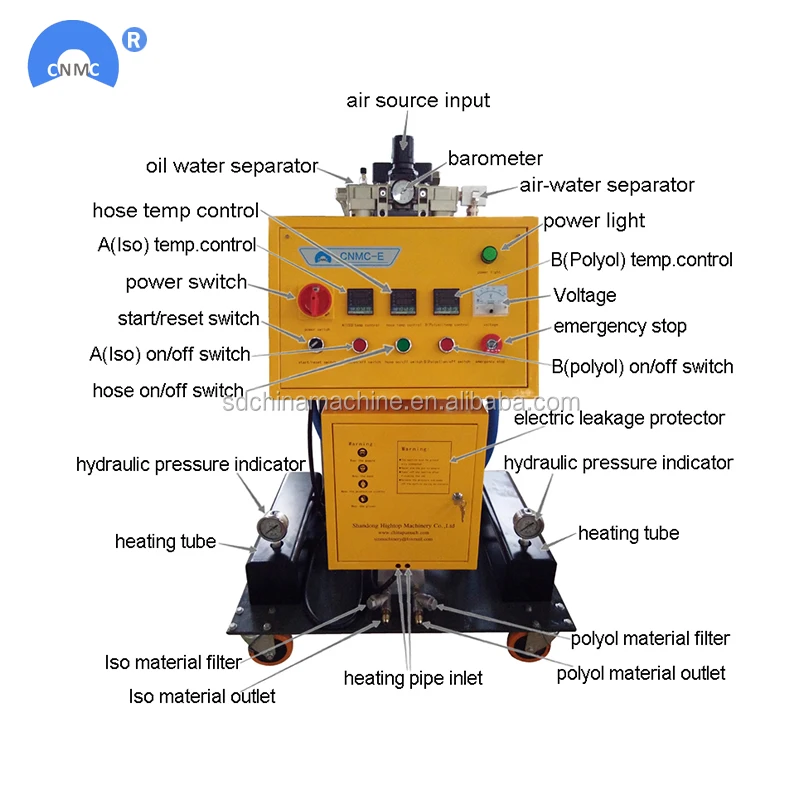

Detailed Images
Primary Heating System
The primary heating system consists of two separate independent block heaters with no seals. Each heater heating elements that
supply a total power of 3000 W with the necessary control and safety features for the accurate and reliable performance of the
system. The special design of the heaters allows for a DT of 30º C and enables it to reach application temperatures of 70º C in
normal environmental conditions.


Proportioning Pumps
The system is including two positive displacement piston pumps, driven by a pneumatic motor. The proportioning pumps are
manufactured from high hardness tempered aluminium and a special treatment that offers a low coefficient of friction, a high level
of lubrication, and an increased level of wear resistance. The system includes a common guide system that ensures dynamic
stability guaranteeing the correct alignment of the pump group and extending the life of the packing seals.


Recirculation System
Recirculation of the two components allows a faster achievement of the preset temperatures at the heaters before starting to spray
and during temporary shutdowns.


Hose Heating System (OPTIONAL)
The hose heating system is designed with 1000W each 15 meters that allows the heating of up to 90m. of hose. The system
incorporates an innovative concept of heated hose in which the copper resistance is homogenously spread around the hose. This
allows accurate and uniform control of the application temperature of the products.

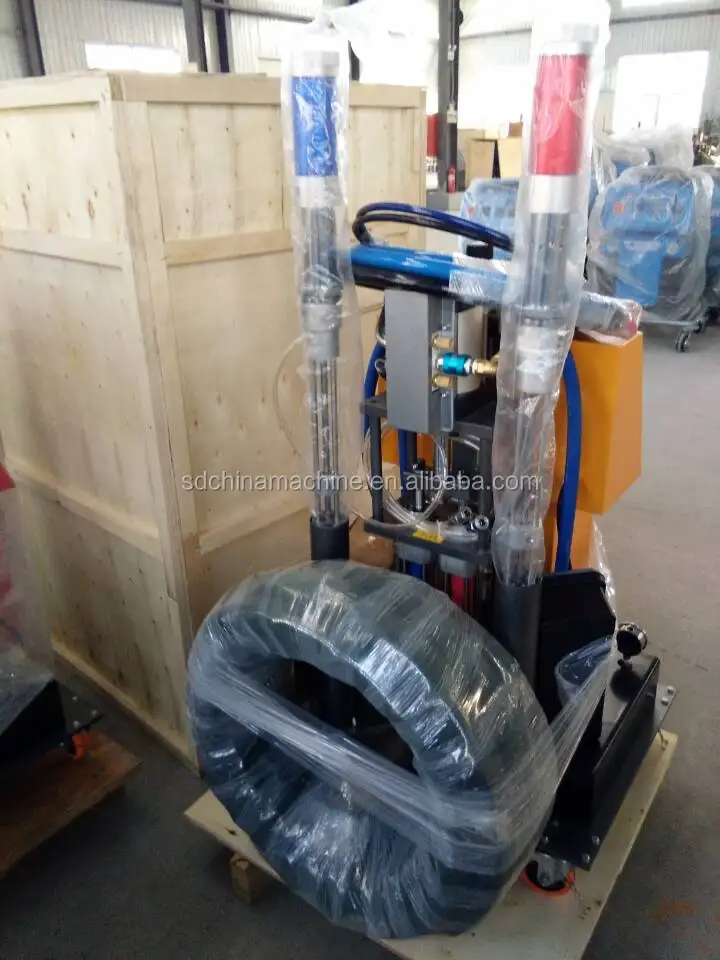

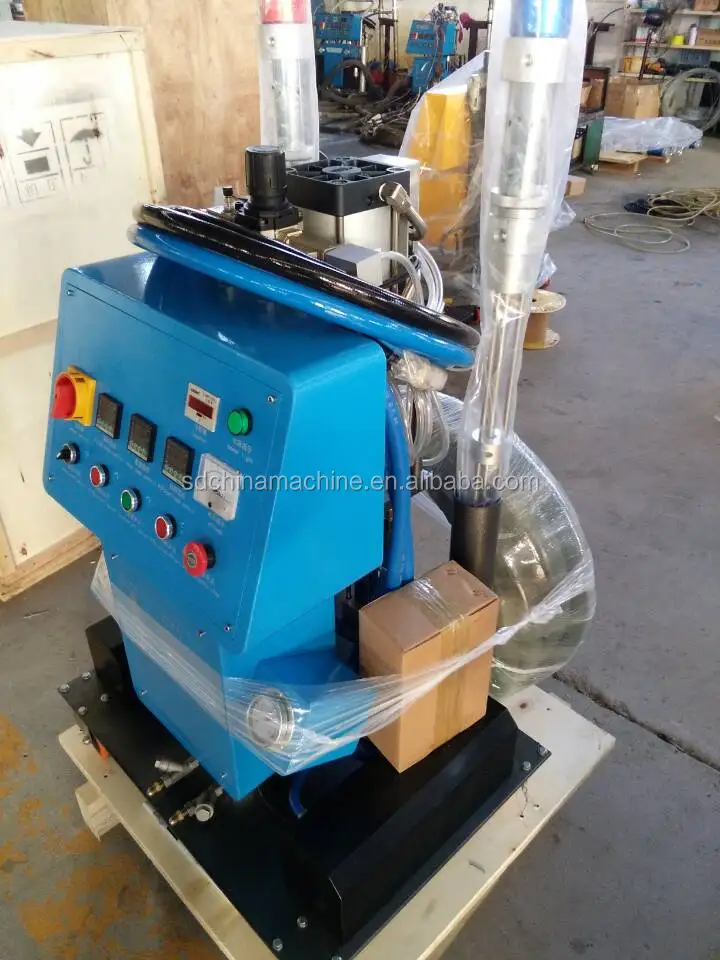

Packing&Shipping
